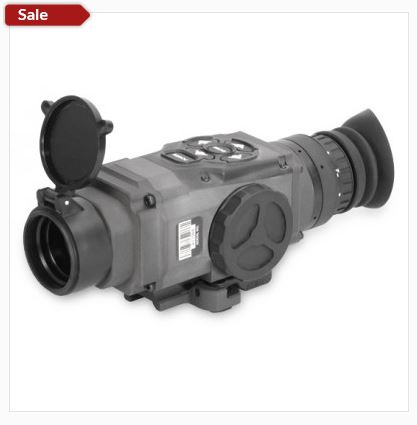

ATN ThOR-240 Thermal Weapon Sight - 1-4x 240x180 px 30 Hz
Submitted 4 years 8 months ago by feeds user.
Description:
Sensor (microbolometer): 240 x 180 px
Type: Uncooled
Material: Vanadium oxide (VOx)
Image Size (output resolution): 800x600 px
Frame rate: 30 Hz
Video output: Yes
Display: Color OLED matrix, SVGA
Thermal Sensitivity:
Spectral Response: 7-14 µm
Lens System: 19 mm
Field of View (H x V): 24°x18°
Eye Relief: 28 mm
Optical Magnification: 1X
E-Zoom: 2X, 4X
Diopter Adjustment:
Distance of the human detection, m (w/o zoom): 500 m
Distance of the human recognition, m: 225 m
Distance of the human identification: 135 m
Distance of the vehicle detection: 1100 m
Distance of the vehicle recognition: 495 m
Distance of the vehicle identification: 300 m
Reticle: Multiple Reticles to Choose From
Reticle Color: Red, Green, Blue, White & Black
Brightness adjustment: Manual
Sharpness adjustment: Automatic
Polarity control: White hot / Black hot / Multiple Color Modes
Start up time:
Environmental Rating: Waterproof / Dustproof
Battery type: 3 x CR123A battery type
Battery Life: 8+hrs
Mounting bracket: MIL-STD 1913 Picatinny (Quick)
Output computer set up: Yes
Low Battery Indicator: Yes
Iconology: Quick access, Icon driven feature controls
Dimensions (without bracket): 6.73" x 2.72" x 2.87" / 171 x 69 x 73 mm
Weight, grams: 1.5 lb /680 grams
